Z30125×40 Radial Drilling Machine: A Highly Efficient and Precision Machining Solution
The Z30125×40 radial drilling machine is a highly favored equipment in the field of mechanical processing.
It features an extensive drilling diameter range, with a maximum drilling capacity of 125 mm, enabling it to meet the hole-processing demands of workpieces across multiple specifications.
The rocker span reaches 4000 mm, a design that provides an expansive operational space. During machining, the drill position can be flexibly adjusted to adapt to machining layouts for workpieces of varying sizes and shapes.
TEFU Z30125X40 Heavy Duty Rocking Arm Drilling Machine Product Display

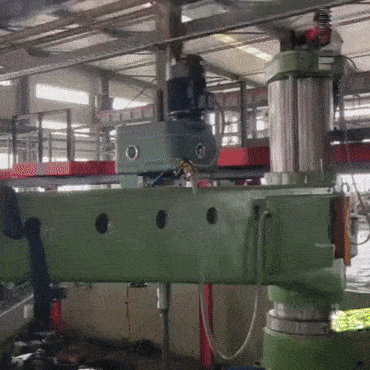

Overview of Heavy-duty Radial Drilling Machine Z30125X40 Assembly Workshop
Packaging Side View of Core Components (Column and Headstock) for Heavy-duty Radial Drilling Machine Z30125X40
Transportation and Shipping of Heavy-duty Radial Drilling Machine Z30125X40 from Factory

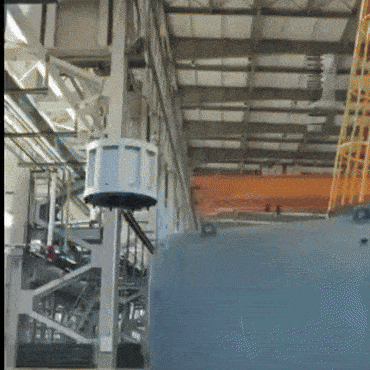

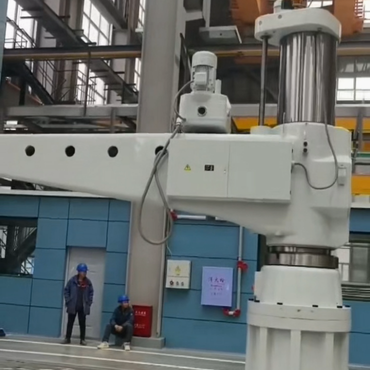

Professional On-site Installation and Commissioning for Heavy-duty Radial Drilling Machine Z30125X40

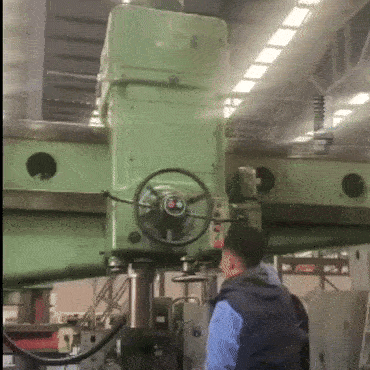

Action Testing and Operation of Heavy-duty Radial Drilling Machine Z30125 at Customer Site
8 Products Found.

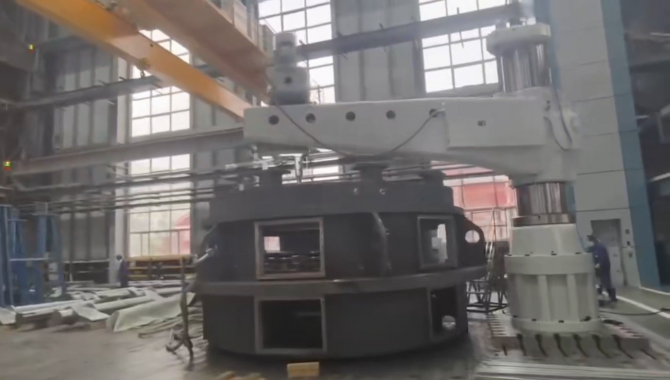

Live Demonstration and Introduction of Heavy-Duty Radial Drilling Machine Model Z30125X40

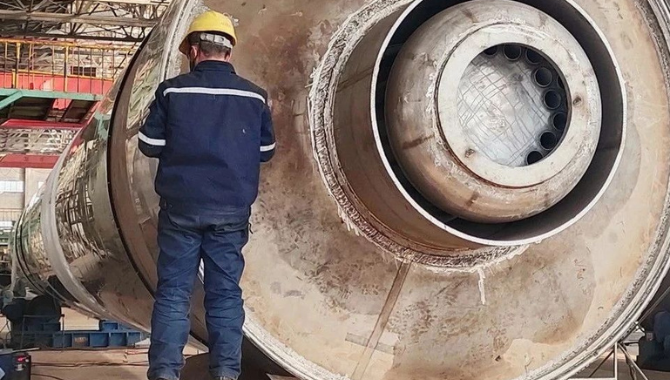

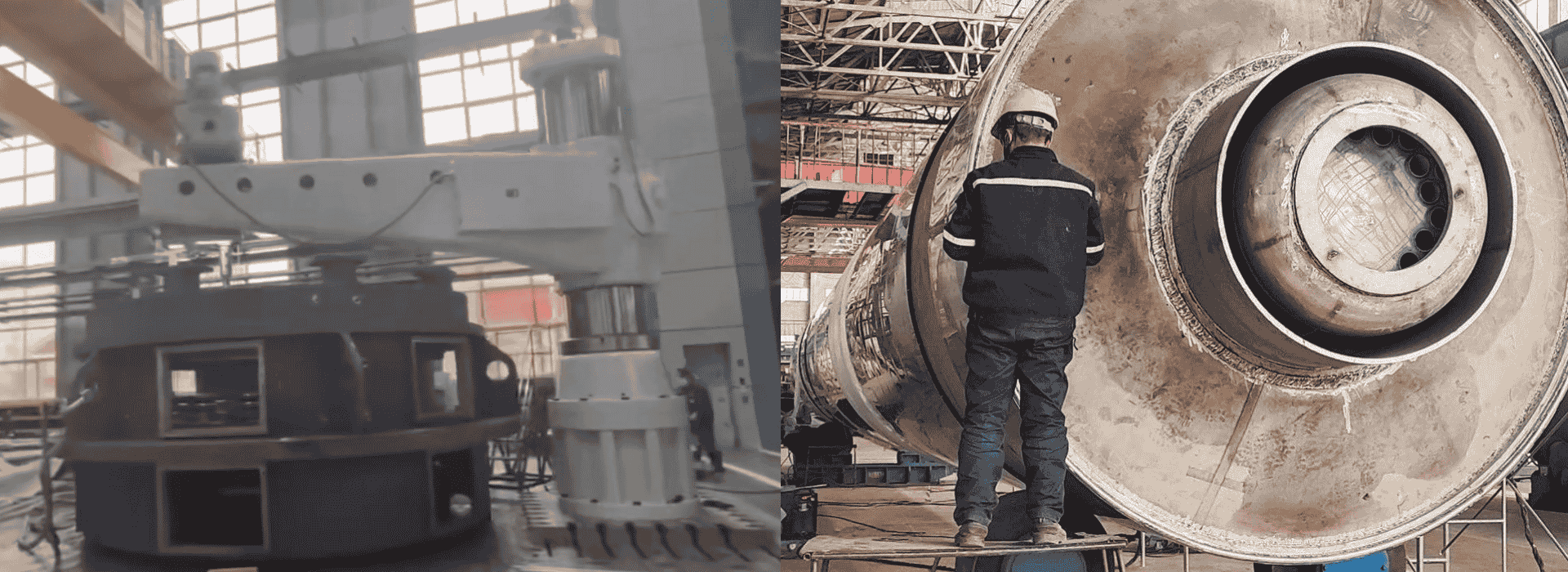

Application Scenarios of Heavy-Duty Radial Drilling Machine Model Z30125X40
TEFU Z30125X40 Heavy Duty Rocker Drilling Machine Product Technical Parameters
- TEFU Z30125X40 Heavy Duty Rocker Drilling Machine Product Technical Parameters
| TEFU Z30125X40 Classic Heavy Duty Rocker Drilling Machine | Unit | Z30125X40 | |
| Maximum drilling diameter | mm | 125 | |
| Distance from spindle center to riser bus bar | Maximum | mm | 4000 |
| Minimum | mm | 600 | |
| Distance from spindle nose to base worktable surface | Maximum | mm | 2500 |
| Minimum | mm | 750 | |
| Spindle stroke | mm | 560 | |
| Spindle taper | No. | metrik 80 | |
| Range of spindle speed | r/min | 6.3-800 | |
| Number of spindle speeds | Series | 22 | |
| Range of spindle feeds | mm | 0.06-3.2 | |
| Number of spindle feeds | Series | 16 | |
| Worktable dimension (length*width*height) | mm | 1250X800X630 | |
| Horizontal movement distance of the spindle box | mm | 3400 | |
| Allowable maximum torque of the spindle | Nm | 3136 | |
| Main motor power | KW | 18.5 | |
| Rocker arm/sleeve lifting distance | mm | 1250 | |
| Inclination angle of the spindle box | – | – | |
| Movement distance of the slide carriage | mm | – | |
| Machine tool weight | kg | 28500 | |
| Machine tool overall dimension (length*width*height) | mm | 5817X2151X5120 | |
| Cross arm guide hardness （Rockwell hardness） | HRC | 57-60 | |
| Tapping capacity(cast iron) | Maximum | M100+ | |
| Tapping capacity(steel) | Maximum | M90+ | |
